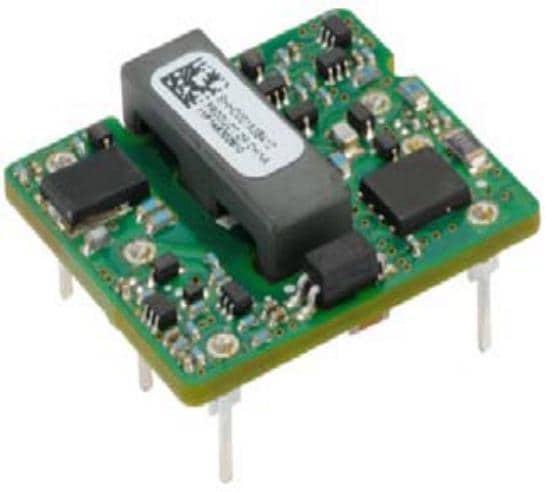

OmniOn Power (Formerly ABB Power Conversion) SHHD001A3B41Z Isolated 18-75Vin 12Vout 1.3A 15W Neg Logic TH

Width: 24.4 mm (0.961 in)

Height: 8.5 mm (0.335 in)

Length: 27.9 mm (1.098 in)

Industry: Industrial

Unit Weight: 8 g

Output Power: 15 W

Input Voltage: 18 V to 75 V

Mounting Style: Through Hole

Isolation Voltage: 2.25 kV

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 75 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 1.3 A

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
