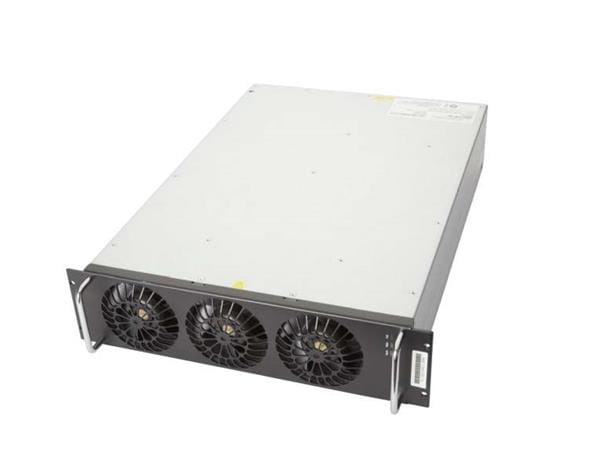

OmniOn Power (Formerly ABB Power Conversion) EV101H3N1K DC Fast Charger Rectifier 30kW, 150-1000Vdc output, 380/400/480VAC Input, CANopen protocol, with discrete EPO function, for Embedded Applications inside Level 3 DC Fast Chargers and Cabinets

Width: 300 mm (11.811 in)

Height: 84 mm (3.307 in)

Length: 435 mm (17.126 in)

Industry: Industrial

Efficiency: 96 %

Output Power: 30 kW

Input Voltage: 260 VAC to 530 VAC

Mounting Style: Chassis

Input Frequency: 45 Hz to 65 Hz

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 100 A

Output Voltage-Channel 1: 150 VDC to 1 kVDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
