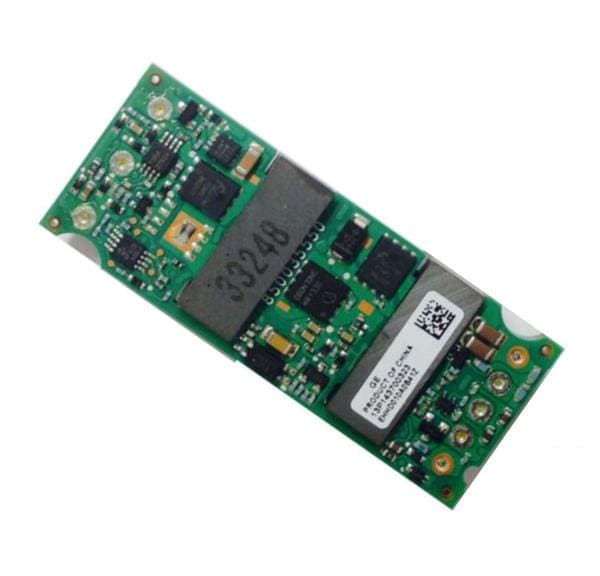

OmniOn Power (Formerly ABB Power Conversion) EHHD010A0B41Z Isolated Bus converter, 120W Eighth-brick, 18-75 Vin, 10.8-13.2 Vout, Open frame

Width: 22.86 mm (0.9 in)

Height: 7.62 mm (0.3 in)

Length: 57.9 mm (2.28 in)

Industry: Industrial

Unit Weight: 37 g

Output Power: 120 W

Input Voltage: 18 V to 75 V

Mounting Style: Through Hole

Isolation Voltage: 2.25 kV

Number of Outputs: 1 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 10 A

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
