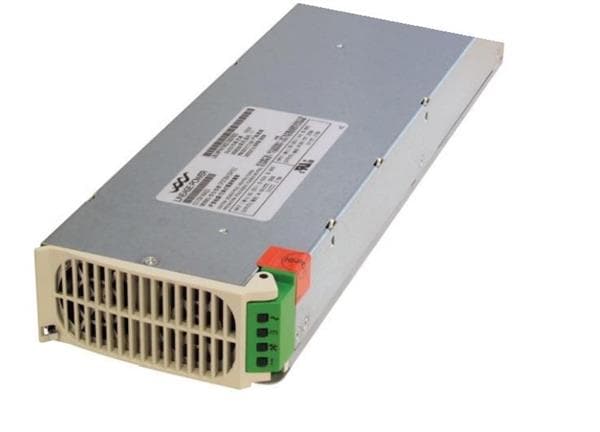

OmniOn Power (Formerly ABB Power Conversion) CP2000AC54TEZ-B RECTIFIER Power Supplies 2000W +/-54Vdc 37A BK plate Rectifier

Width: 101.6 mm

Height: 41.4 mm

Length: 351.2 mm

Industry: Industrial

Dimensions: 351.2 mm x 101.6 mm x 41.4 mm

Unit Weight: 2.180 kg

Output Power: 1.2 kW, 2 kW

Input Voltage: 100 VAC to 120 VAC, 200 VAC to 277 VAC

Mounting Style: Rack

Input Frequency: 47 Hz to 66 Hz

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 23 A, 38.4 A

Output Voltage-Channel 1: 42 VDC to 58 VDC

Maximum Operating Temperature: + 75 C

Minimum Operating Temperature: - 10 C
