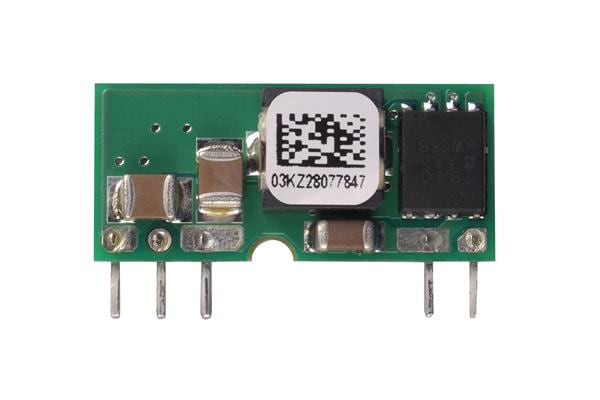

OmniOn Power (Formerly ABB Power Conversion) AXA005A0XZ Non-Isolated / PoL SIP in 10-14Vdc out 0.75-5.5Vdc 5A

Width: 10.2 mm (0.402 in)

Height: 6.65 mm (0.262 in)

Length: 22.9 mm (0.902 in)

Industry: Industrial

Output Type: Programmable

Unit Weight: 7.434 g

Output Power: 28 W

Mounting Style: Through Hole

Number of Outputs: 1 Output

Input Voltage - Max: 14 V

Input Voltage - Min: 10 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 750 mV to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
