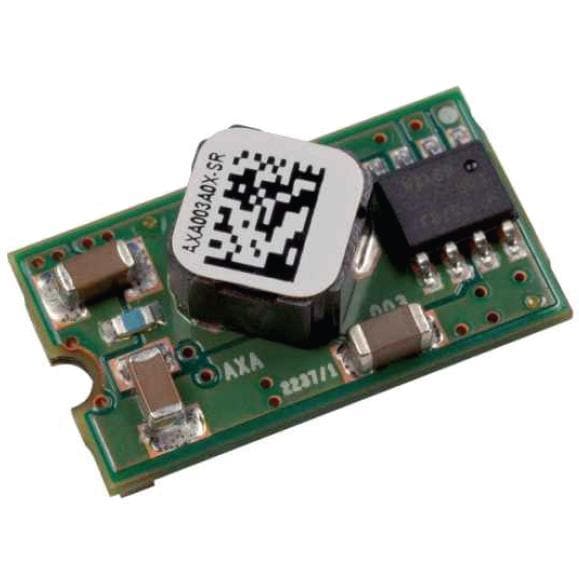

OmniOn Power (Formerly ABB Power Conversion) AXA003A0X-SRZ Non-Isolated / PoL SMT in 8.3-14Vdc out 0.75-5.5Vdc 3A

Width: 11.4 mm (0.449 in)

Height: 7.27 mm (0.286 in)

Length: 20.3 mm (0.799 in)

Industry: Industrial

Output Type: Programmable

Unit Weight: 6.200 g

Output Power: 17 W

Mounting Style: SMD/SMT

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 14 V

Input Voltage - Min: 8.3 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 3 A

Output Voltage-Channel 1: 750 mV to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
