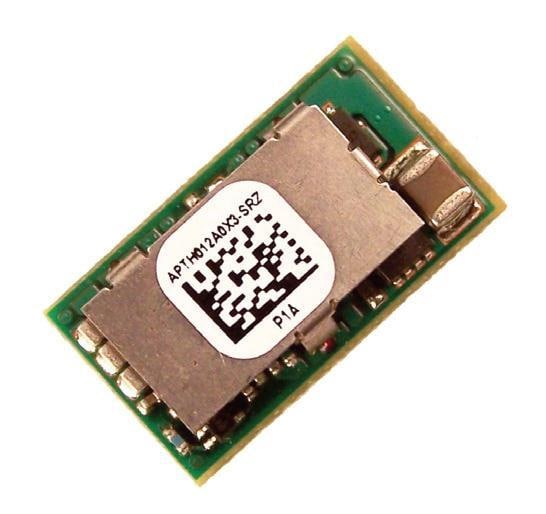

OmniOn Power (Formerly ABB Power Conversion) APTH012A0X3-SRZ Non-Isolated / PoL SMT in 2.4-5.5Vdc out 0.69-3.63Vdc 12A

Width: 8.5 mm (0.335 in)

Height: 20.3 mm (0.799 in)

Length: 11.43 mm (0.45 in)

Industry: Industrial

Compliance: UL; CSA; VDE; CE

Output Type: Programmable

Unit Weight: 4 g

Mounting Style: SMD/SMT

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 5.5 V

Input Voltage - Min: 2.4 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 12 A

Output Voltage-Channel 1: 600 mV to 3.63 V
