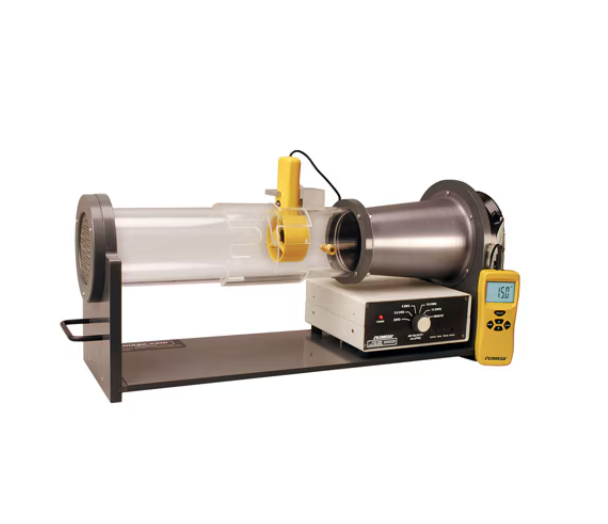

OMEGA WTM-1000 Open loop benchtop wind tunnel (15 m/s; ±1%)

Specifications

Accuracy: ±1% of setting or ±0.1 m/s, whichever is larger

Test Chamber: 10 cm (4") diameter

Flow Rates: 2.5 m/s (492 fpm), .0 m/s (984 fpm), 10 m/s (1969 fpm), 15 m/s (2953 fpm)

Remote Option: Use an external 5K, 10-turn potentiometer to vary air speed

DC Motor: 24 Vdc @ 1.1 A (26 W)

Power: 90 to 250 Vac @ 50/60 Hz

Operating Temperature: 5 to 45°C (41 to 113°F)

Operating Relative Humidity: 80% RH max without condensation

Size: 68.5 L x 20.3 W x 29.2 cm H (27 x 8 x 11.5")

Weight: 8.2 kg (18 lb)

Standard delivery: operator’s manual and NIST certificate of calibration.
