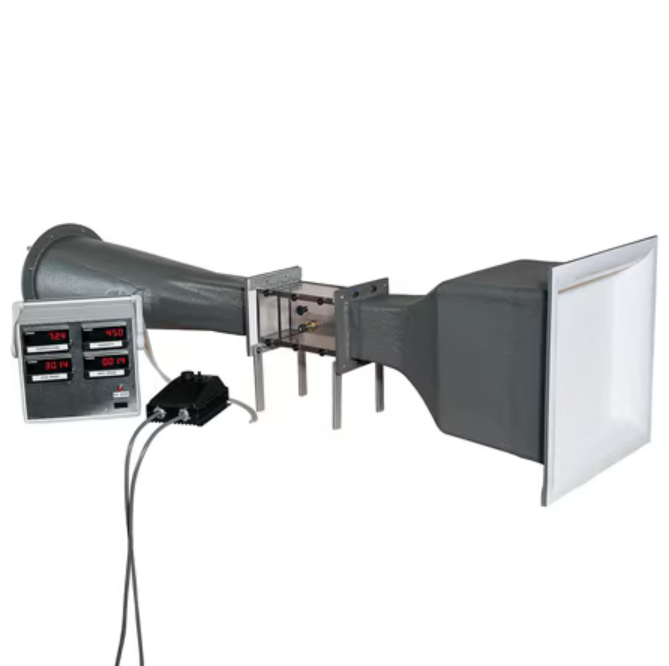

OMEGA WT4401-D Open loop benchtop wind tunnel (0.15 to 45 m/s; ±1%)

Wind Tunnel

Accuracy: 1% rdg (2% rdg with restrictive plates)

Flow Rates: 25 to 9000 fpm (0.15 to 45 m/s)

Noise: 95 dBA maximum

Size: 1.5 m L x 431.8 mm H (5' x 17")

Motor

Power: 120 Vac

Current: 12 amps

Speed: 10,000 RPM

Motor Control Box

Power: 120 Vac

Speed Adjustment: 10 turn pot.

Internal Adjustment: Minimum, Maximum, acceleration and current limit

Size: 140 W x 184 L x 89 mm H (5.53 x 7.25 x 3.5")

Weight: Wind tunnel: 22.5 kg (49.5 lb);

Deluxe elec. 7 kg (15.3 lb)

Monitoring Systems

Standard Package: PX657 127 mm (5") H2O differential pressure sensor and DP41-S-A meter with analog output in benchtop case

Standard delivery:

Operator’s Manuals for all Included Instrumentation and Sensors

Calibration Sheet for the Barometer
