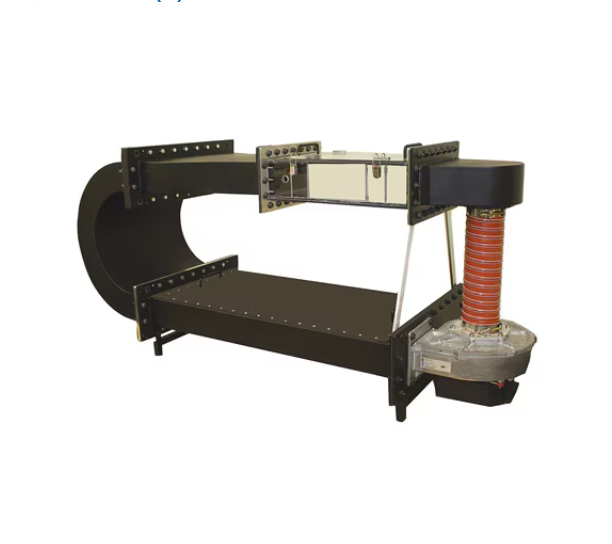

OMEGA WT-3067 Closed loop benchtop wind tunnel (0 ~ 7 m/s; ±1%)

Specifications

Wind Tunnel: 143.6 L x 49.3 W x 67.7 cm H (56.5 x 19.4 x 26.6")

Test Section: 41.8 L x 22.5 W x 8.9 cm H (16.4 x 8.9 x 3.5")

Number of Sensor Ports: 6

Flow Range: 0 to 7 m/s (0 to 1200 ft/min)

Flow Uniformity: ±1%

Flow Accuracy: ±2%

Temperature Range: Up to 85°C (185°F)

Temperature Accuracy: ±1°C

Weight: 70.7 kg (156 lb)

Main AC Voltage: 220 Vac

Main AC Fuse: 20 Amps

Minimum Support Table Size: 115 L x 50 cm W (45.2 x 19.7")

Standard delivery:

Wind tunnel controller and thumb drive (software and manual on thumb drive)

Datasheet

Manual
