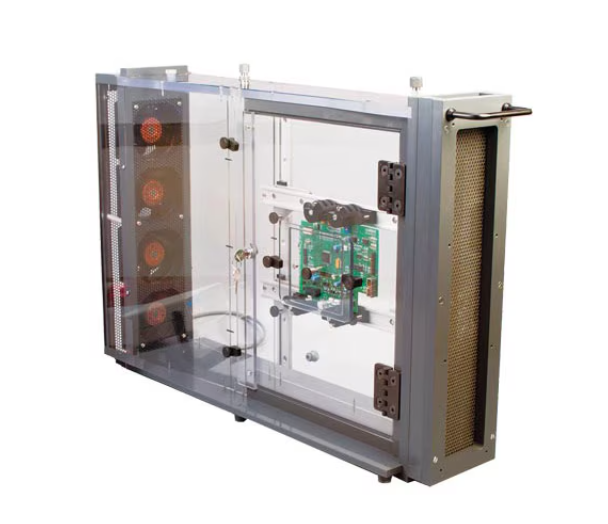

OMEGA WT-2000 Open loop benchtop wind tunnel (0 ~ 5 m/s)

Specifications

Wind tunnel

Flow Rate: 0 to 5 m/s (0 to 1000 ft/min)

Size: 80.5 L x 18.4 W x 48.4 cm H (31.7 x 7.3 x 19.1")

Weight: 12.48 kg (27.5 lb)

Test Chamber: 43 x 8.25 cm cross section (17 x 3.25")

Fan Speed: 3800 RPM

DC Fan Motor: 12 Vdc @ 0.47A ea (5.6W ea) x 4

Noise: 61 dBA max, 1 meter away

Electrical Control Box

Power: 90 to 264 Vac @ 47 to 63 Hz

Fuse: 2A fast acting 5 x 20 mm cartridge type

Size: 16 L x 13.8 W x 6.7 cm H (61⁄4 x 47⁄16 x 211⁄16")

Weight: 0.9 kg (2 lb)

PC Interface: USB

Operating Temperature: 5 to 45°C (41 to 113°F)

Operating Relative Humidity: Less than 80% without condensation

Standard delivery:

Wind tunnel test chamber

Electronic control box

Controller fan

Control cable

PC interface cable

Molded power cord (for US, Canada, and Mexico)

Operator’s manual

PC interface software CD
