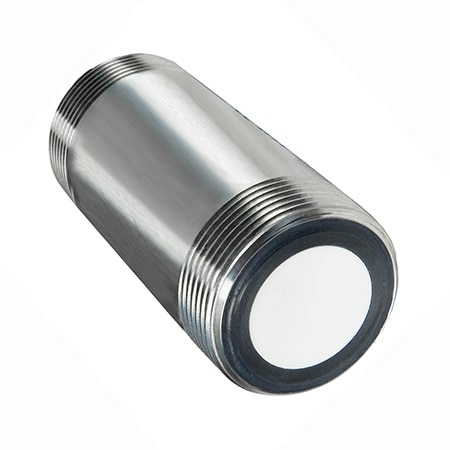

OMEGA ULR30-15NPT-485 Long Range Ultrasonic Level/Distance Transmitter-Switch (1 1/2 in, NPT Male, RS485, 30 ft)

Length: 4064 in

Memory: Non - Volatile

Weight: 0.64 kg

Accuracy: ± 0.5 %

Diameter: 1.2 in

Materials: 316 Stainless Steel

Resolution: 0.0068 in

Cable Length: 6.5 ft

Output Signal: Current, Voltage

Data Interface: RS485

Loop Resistance: 450 Ω max @ > 15 Vdc, 250 Ω max @ 10 Vdc

Electrical Output: 5 Outputs (0-10 Vdc,4-20 mA Sourcing,4-20 mA Sinking,two switches)

Enclosure Ratings: IP68, NEMA Type 4X

Operating Humidity: 0 to 100% RH

Media Compatibility: Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids

Measuring Range, Max: 30 ft

Measuring Range, Min: 10 ft

Transducer frequency: 75 kHz

Ultrasonic Beam Width: 12 ° at -3db

Operating Pressure, Max: 50 psi

Process Connection Size: 1 1/2 in

Process Connection Type: NPT Male

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -40 °C
