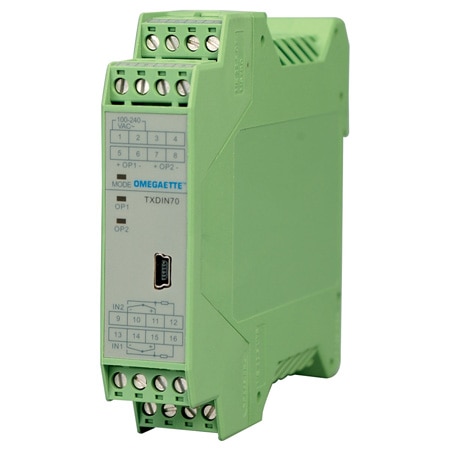

OMEGA TXDIN70 Dual DIN Rail Temperature Transmitter w/ Programmable Inputs (Thermocouple, RTD, Voltage, 0 to 20 mV, 0 to 60 mV, 0 to 100 mV, 0 to 1V, 0.2 to 1V, K: -50 to 1300°C , S: -50 to 1700°C , R: -50 to 1700°C, T: -200 to 350°C, E: 0 to 1000°C , J: 0 to 1200°C ,B*: 0 to 1800°C, N: -50 to 1300°C , WRe5%WRe26: 0 to 2300°C,Pt100: -200 to 900°C)

Drift: < 0.01 % FSO/°C

Width: 22.5 mm

Height: 100 mm

Length: 100 mm

Weight: 85 g

Accuracy: ± 0.3 %

Mounting: DIN Rail Mount

Approvals: CE

Input Type: Thermocouple, RTD, Voltage

EMC Standard: IEC 61000-4-4, IEC 61000-4-5

Output Value: Process

Accuracy Note: Retransmission Accuracy: 0.3% full scale ±1 digit (including input and output error)

Output Detail: Can be freely defined in the range of 0 to 22 mA with maximum output voltage ≥11V

Output Signal: Current

Supply Voltage: 100 to 240 Vac, 24 Vdc

supply-voltage: 100 to 240 Vac, 24 Vdc

Number of Inputs: 3

Electrical Output: 0 to 22 mA

Power Consumption: max 3 W

Relative Humidity: ≤90% RH

Supply Power Type: AC/DC

Voltage Measurement Range: 0 to 20 mV, 0 to 60 mV, 0 to 100 mV, 0 to 1V, 0.2 to 1V

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -10 °C

Temperature Measurement Range: K: -50 to 1300°C , S: -50 to 1700°C , R: -50 to 1700°C, T: -200 to 350°C, E: 0 to 1000°C , J: 0 to 1200°C ,B*: 0 to 1800°C, N: -50 to 1300°C , WRe5%WRe26: 0 to 2300°C,Pt100: -200 to 900°C
