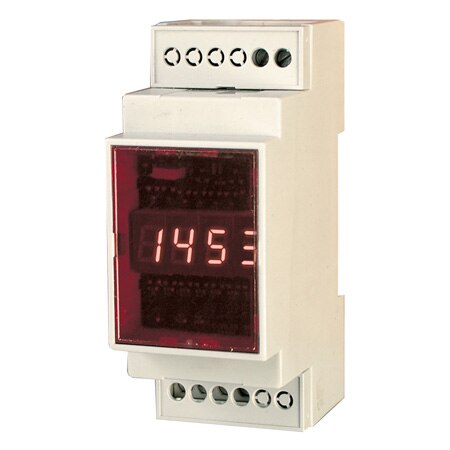

OMEGA TXDIN101 DIN Rail Universal Smart Transmitter w/ LED Display (Thermocouple, RTD, Voltage, -145 to 145 mV, K: 200 to 1370°C, J: -200 to 1200°C, E: -200 to 1000°C, N: -200 to 1300°C, T:-100 to 400°C, R: 0 to 1760°C, S: 0 to 1760°C , B: 100 to 1820°C, L: -190 to 890°C, D: 0 to 2230°C, G: 0 to 2160° C, C: 15 to 2320°C, Pt100: -200 to 850°C)

Width: 36 mm

Height: 58 mm

Length: 91 mm

Weight: 85 g

Mounting: DIN Rail Mount

Software: PC Software CONCAL for COM and USB ports

Materials: Plastic, Polycarbonate

Input Type: Thermocouple, RTD, Voltage

Cable Length: 1.5 m

Display Type: LED

Output Signal: Current

Data Interface: USB

Number of Inputs: 3

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP20, UL94 V-0

Electrical Connection: Screw Terminal

Voltage Measurement Range: -145 to 145 mV

Temperature Measurement Range: K: 200 to 1370°C, J: -200 to 1200°C, E: -200 to 1000°C, N: -200 to 1300°C, T:-100 to 400°C, R: 0 to 1760°C, S: 0 to 1760°C , B: 100 to 1820°C, L: -190 to 890°C, D: 0 to 2230°C, G: 0 to 2160° C, C: 15 to 2320°C, Pt100: -200 to 850°C
