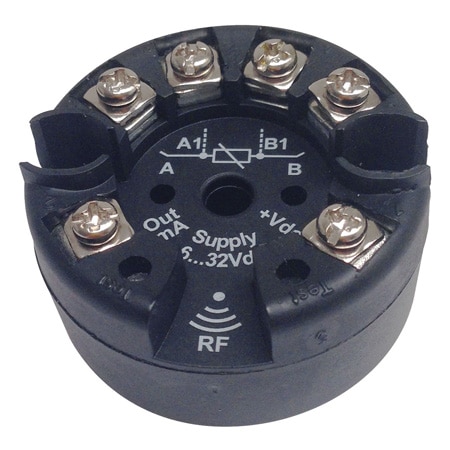

OMEGA TX401 Head Mount Temperature Transmitters with RFID Communications (RTD, Pt100: -200 to 800 °C; Pt1000: -200 to 800 °C; Ni100: -50 to 170 °C)

Height: 23 mm

Memory: 3966 Data Points

Weight: 30 g

Diameter: 45 mm

Mounting: DIN/B Head

RTD Type: Pt100, Pt1000, Ni100

Software: Windows® XP/7/8 (32-bit and 64-bit), Windows 10 (64-bit)

Approvals: CE,EN 61000-6-4, EN 61000-6-2

Isolation: Non-isolated

Input Type: RTD

Protection: Current 30 mA

Resolution: 1 μA

Calibration: Wireless with RFID technology (NFC)

Sensor Type: Transmitter

Probe Length: 0 mm

Output Detail: Output Error: Between 21.5 or 3.8 mA

Response Time: 600 ms

Sampling Time: 300 ms

Humidity Range: 30 to 90% RH non condensing

Setup Controls: Wireless with RFID technology (NFC)

Supply Voltage: 6 to 32 Vdc

Noise Rejection: 50 to 60 Hz

Sheath Material: N/A

Housing Material: Nylon (PA66)

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP20, NEMA Type 1

Supply Power Note: 2-wire loop powered; operating range 6 to 32 Vdc

Supply Power Type: DC

Thermocouple Type: N/A

Input Control Signal: N/A

Lead Resistance, Max: 20 Ω

Electrical Connection: Screw Terminal

Programmable Functions: offset, Range, Sampling Frequency, Sensor Burnout Indication, sensor type

Wiring/Connector Table: Pt100: 2, 3, or 4-wire connection, Pt1000: 2-wire connection, Ni100: 2, 3, or 4-wire connection

Temperature Coefficient: 0.00385 Ω/°C

Temperature Input Range: Pt100: -200 to 800 °C; Pt1000: -200 to 800 °C; Ni100: -50 to 170 °C

Transmission Error, Max: 0.1% or 0.2°C

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -40 °C

Operating Temperature, Max: 85 °C

Operating Temperature, Min: -40 °C
