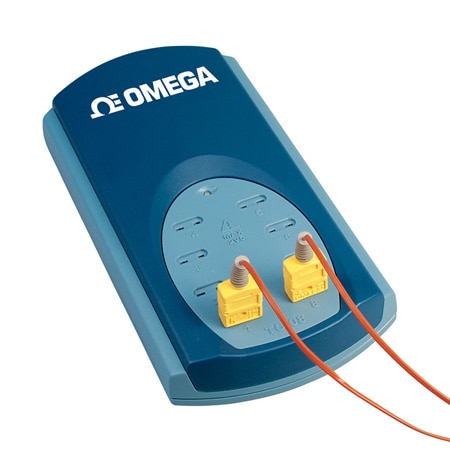

OMEGA TC-08 8-Channel USB Thermocouple Data Acquisition Module (Thermocouple, Voltage, Analog: 8, Miniature Female Thermocouple Connector)

Width: 104 mm

Height: 34 mm

Length: 201 mm

Memory: 32 MB minimum

Accuracy: ± 0.2 %

Software: TC-08 Recorder and Player

Input Type: Thermocouple, Voltage

Configuration: Pentium class processor or equivalent

Output Signal: N/A

Data Interface: USB 1.1, USB 2.0

Analog I/O Note: Analog Input Note: Conversion Time: 100 ms (thermocouple and cold junction compensation)

Conversion Rate: 100 ms

Impedance Input: 2 MΩ

Input Type Note: Thermocouple: J, K, T, E, R, S, B, N

USB Cable Length: 1.8 m

Common Mode Voltage: ±7.5V

Data Interface Note: Supported Operating System: Microsoft Windows®XP SP2 / VISTA/7

Electrical Connection: Miniature Female Thermocouple Connector

Number of Channels, Input: Analog: 8

Voltage Measurement Range: ±70 mV
