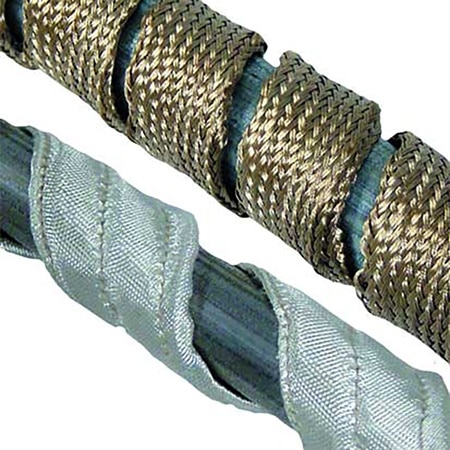

OMEGA SWH251-060 Fiberglass Heater Tape 1400 °F Max and 120-240 Volts (1411 W, 7.8 W/in²)

Insulation: Double-Braided Samox

Wire Length: 24 in

Applications: Conductive surfaces, Non-Conductive Surfaces

Heater Power: 1411 W

Heater Width: 0 in

Heater Length: 6 ft

Supply Voltage: 120 Vac

Heater Diameter: 2.5 in

Thermostat Type: Not Built-In

Enclosure Ratings: IP5X

Power Density, Max: 7.8 W/in²

Dielectric Strength: in Excess of 2000V

Electrical Connection: NEMA 1-15P

Heating Element Gauge: 36 to 40 AWG

Lead Temperature, Max: 260 °C

Lead Wire Exit Direction: Opposite

Exposure Temperature, Max: 760 °C

Heating Element Gauge Note: 36-40 gauge finely stranded resistance wire

Material Construction Option: Wide, Heavy Insulation

Lead Wire Exit Direction Note: Emerge from opposite ends into separate sides of integrally molded separate plug. Maximum temperature for lead wires is 260CELSIUS (500°F).
