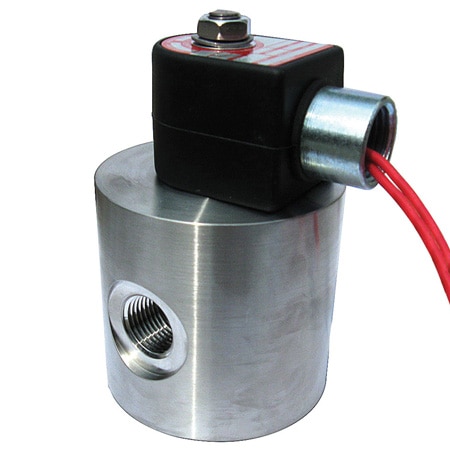

OMEGA SVH-122-NO 2-Way, NO, NC, 316 SS, High Flow Very High Pressure Solenoid Valves (4.5 gal/min, 1/2 in, NPT Male, Pilot Operated, Normally Open)

Weight: 3.2 kg

Cv Factor: 4.5 gal/min

Materials: 316 Stainless Steel, PTFE, PEAK, Nitrile Rubber, FKM, 302 Stainless Steel,430 Stainless Steel, 303 Stainless Steel, Nylon

Coil Power: 120 Vac/10 W

Duty Cycle: 100%

Media Type: N/A

Valve Type: Pilot Operated

Orifice Size: N/A

Valve Position: Normally Open

Materials, Wetted: 302 Stainless Steel, 316 Stainless Steel, 430 Stainless Steel, Buna-N (NBR), FKM, Nylon, PEAK, PTFE

Media Compatibility: Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water

Electrical Connection: 1/2 NPT female Conduit with Wire Leads

Operating Pressure, Max: 5000 psi

Process Connection Size: 1/2 in

Process Connection Type: NPT Male

Process Temperature, Max: 121 °C

Process Temperature, Min: -37 °C

Electrical Connection Note: 1/2 NPT, 457 mm (18") leads
