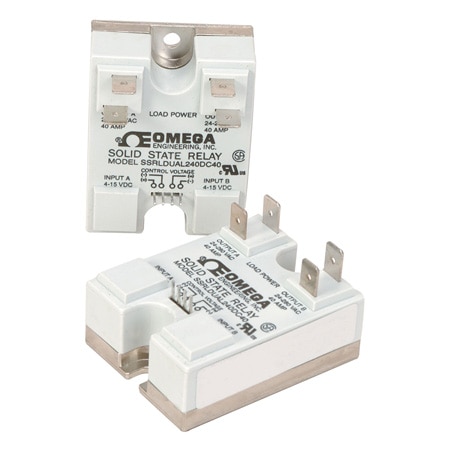

Features: Dual Soild State Relays
Frequency: 47 to 63 Hz
Power Cycle: Turn-On Time: 8.33 ms; Turn-Off Time: 8.33 ms; *Random SSR’s turn on in less than 100 µs
Current, Min: 100 mArms
Voltage, Max: 550 V
Current Output: 40 A
Supply Voltage: 24 to 280 Vac
Voltage Output: 550 V
Dropout Voltage: 1 Vdc
Leakage Current: 0.1 mA
Housing Material: UL 94V0 (self-extinguishing)
Input Resistance: 500 Ω
Number of Phases: 1
Signal fail-safe: 500 Vµs
Thermal Resistivity: 0.4
Thermal Sensitivity: 2435
Input Control Signal: 4 to 15 Vdc
Leakage Current Note: Off-State Leakage (@ Maximum Line Voltage and Ta = 25°C)
Surge Current Rating: 1 Cycle, Max: 780 A
Operating Voltage, Min: 1.3 V
Isolated Analog Voltage: 4000 Vrms
Measurement Current, Max: 34 mA
Measurement Current, Min: 7.5 mA
Storage Temperature, Max: 100 °C
Storage Temperature, Min: -40 °C
Thermal Sensitivity Note: I²T (60 Hz, 1 ⁄2 Cycle): DC40: 2435
Operating Temperature, Max: 80 °C
Operating Temperature, Min: -40 °C
Input-to-Output Capacitance: 8 pF
Input/Output-to-Ground Isolation: 2500 Vrms
