Accuracy: ± 0.5 %
Mounting: DIN Platinum
Stability: <0.2°C
Insulation: PFA
Cable Length: 36 in
Sensor Width: 15.7 mm
Response Time: <200 ms
Sensor Height: 0.64 mm
Sensor Length: 25 mm
Cable Diameter: 0.06 in
Stability Note: <0.2°C drift per year at rated service and proper mounting
Number of Wires: 2
Bend Radius, Min: 9.5 mm
Nominal Resistance: 100 Ω
Response Time Note: <200 milliseconds lag on metal surfaces
Self Heating Effect: 0.33 °C / mW
Electrical Connection: Stripped Leads
Insulation Resistance: 50 MΩ
Temperature Coefficient: 0.00385Ω/Ω/°C

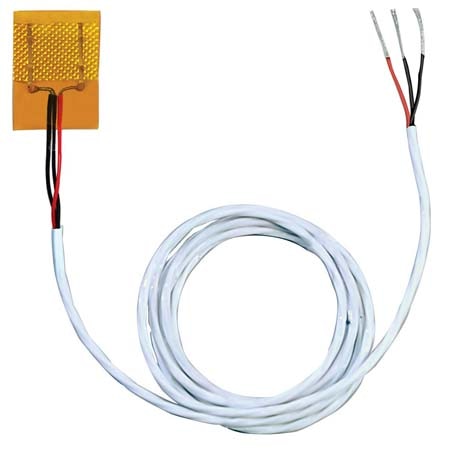

Temperature Sensor Type: RTD
Process Temperature, Max: 260 °C
Process Temperature, Min: -200 °C
Insulation Resistance Note: 50 M Ω minimum at 50 Vdc ribbon cable. 100G Ohm minimum at 500 Vdc, round twisted cable (dry conditions at room temperature).
Temperature Coefficient Note: α=0.00385Ω/Ω/°C
