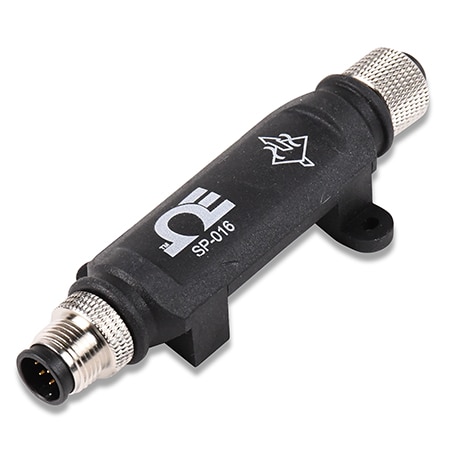

OMEGA SP-016-1 Omega Link M12 Modular Smart Heat Flux Sensor interface with I/O (Heat Flux)

Width: 22.1 mm

Length: 96.7 mm

Accuracy: ± 0.02 %

Software: Compatible with OEG, SYNC, and OMEGA Cloud

Approvals: CE, UKCA

Accuracy Note: ±0.02% or ±4 uV

Configuration: Configurable via Omega Link Smart Interface and SYNC configuration software

Digital Input: VinHighThreshold = 2.2 VMAX, VinLowThreshold = 0.3 VMIN, VinMAX = 30 VDC

Number of I/O: 2

Digital Output: 2x Open Drain 100 mA max, VMAX = 30 VDC

Supply Voltage: 2.8 to 3.3 Vdc

Measurement Type: Heat Flux

Enclosure Ratings: IP67

Supply Power Type: DC

Number of Channels: 2

Input Control Signal: Voltage: ±60 mV

Operating Temperature, Max: 85 °C

Operating Temperature, Min: -40 °C
