Accuracy: Class A
Wire Gauge: 28 AWG
Cable Length: 1 m
Accuracy Note: Class A (± 0.15+.002*
Lead Material: Nickle Plated Copper
Sensor Length: 0.6 in
Number of Wires: 2

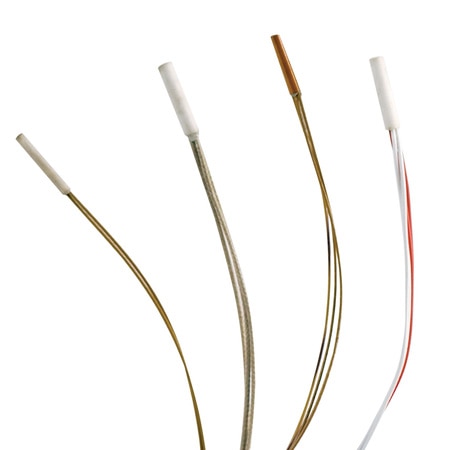

Sensing Element: RTD
Sensor Diameter: 0.086 in
Housing Material: Alumina
Nominal Resistance: 100 Ω
Long Term Stability: 0.05°C (0.02% of resistance) per 5 years, -50 to 300°C, 0.25°C per year to 540°C
Self Heating Effect: >15 mW/°C
Response Time, Water: 0.5 sec
Insulation Resistance: >50 MΩ @ 50 Vdc
Temperature Sensor Type: RTD
Process Temperature, Max: 350 °C
Process Temperature, Min: -200 °C
Insulation Resistance Note: Greater than 50 Megohms at 50 Vdc. at 25°C (77°F)
