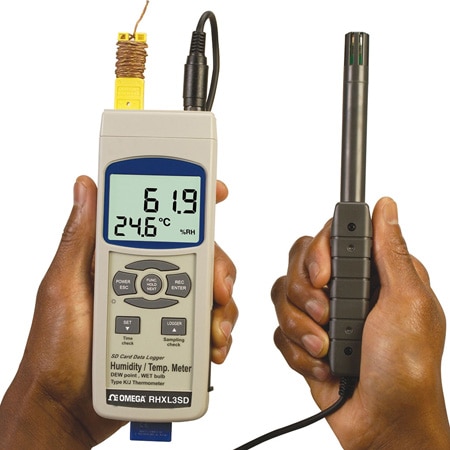

OMEGA RHXL3SD Handheld Thermometer/ Hygrometer Data Logger (Dew Point, -25.3 °C, LCD)

Width: 2.68 in

Height: 6.97 in

Length: 1.77 in

Weight: 489 g

Display Size: 64 mm (2.5 in)

Display Type: LCD

Sampling Time: 1 to 3600 sec

Supply Voltage: 9 Vdc

Measurement Type: Dew Point

Storage Capacity: SD Card upto 16 GB

Display Type Note: Liquid-crystal with green backlight

Power Consumption: max 28 mA

Storable Readings: Maximum, Minimum

Number of Channels: 3

Settable Parameters: Auto Power Off, Beep Sound, Date, Decimal Point, Sampling Time, Temperature Unit, Time

Temperature Accuracy: ± 0.8 °C

Additional Features 1: SD Card Data Logger

Additional Features 2: Embedded microcontroller

Relative Humidity, Max: 0.85

Relative Humidity, Min: 0%

Temperature Resolution: 0.1 °C

Process Temperature, Max: 48.9 °C

Process Temperature, Min: -25.3 °C

Temperature Accuracy Note: ± 1.5°F (± 0.8 °C) for temperature; sum of temperature and humidity accuracies for dew point and wet-bulb temperature.

Operating Temperature Note: Wet-Bulb Temperature: -21.6 to 50 °C

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C

Relative Humidity Accuracy: ± 3.0% RH

Temperature Resolution Note: 0.1 degree (F or C) for temperature and humidity

Dew/Frost Point Temperature Max: 48.9 °C

Relative Humidity Accuracy Note: ≥70% RH: ± (3% reading + 1% RH), <70% RH: ± 3% RH

Dew/Frost Point Temperature, Min: -25.3 °C

Measuring Temperature Range, Max: 50 °C

Measuring Temperature Range, Min: 0 °C
