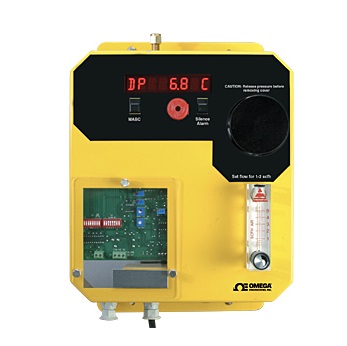

OMEGA RHB-CAC1S2-RHB-ATP Compressed-air dew point monitor (-40 ~ 50°C, 2-stage, probe with 3 m cable)

Specifications

Dew/Frost Point Range (2-Stage): -40 ~ 50°C (-40~ 122°F)

Dew/Frost Point Accuracy: 0.2°C (±0.5°F)

Power: 90 to 250 Vac, 50 to 400 Hz

Operating Temperature: 0 to 50°C (32 to 122°F)

Sample Connection: 1/4" compression fitting

Sample Flow Rate: 0.5 to 5 SCFH; integral flowmeter

Sample Pressure: 0 to 150 psig (higher pressures available, consult Engineering Department)

Analog Output: 4 to 20 mA (0 to 5 Vdc),-50 to 50°C (-58 to 122°F) or -60 to 75°C (-76 to 167°F)

Compliance: 9.0 Vdc, 450 Ω

Display: Red LED, 0.5" high; 8-digit alphanumeric

Audible Alarm: >98 dB @ 2'

Relay Alarm: 1 form “C”, non-latching; 10 A @ 240 Vac, 8 A @ 24 Vdc, 1/2 hp @ 240 Vac

Visual Alarm: Flashing “ALARM” message

Comes with complete operator’s manual and NIST certificate

Datasheet
