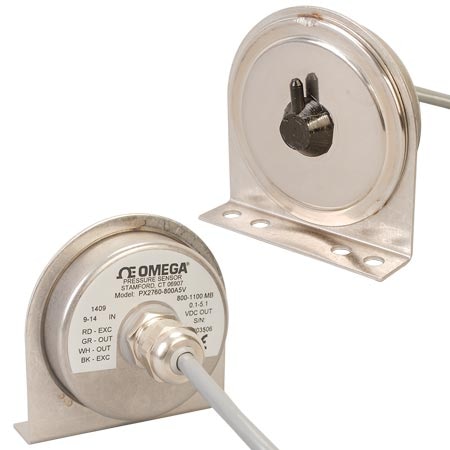

OMEGA PX2760-600A5V High Accuracy, Barometric Pressure Transducers (Barometric, 1100 mBar, Barbed Fitting, 1/8 in)

Shock: 50 g, operating, 1 ⁄2 sine 10 ms

Accuracy: ± 0.25 %

Stability: ± 0.25%

Vibration: 2 g from 5 to 500 Hz

Resolution: Infinite, limited only by noise level (0.005% FS)

Cable Length: 0.6 m

Power Supply: <0.2 W

Accuracy Note: ± 0.25% span RSS at constant temperature (includes linearity, repeatability and hysteresis)

Output Signal: Voltage

Pressure Note: Range Max Pressure 600 to 1100 mbar 20 psia (450 to 825 mmHg) 800 to 1100 mbar 20 psia (600 to 825 mmHg) 0 to 20 psia 30 psia (0 to 1034 mmHg)

Pressure Type: Barometric

Pressure, Max: 1100 mBar

Pressure, Min: 600 mBar

Response Time: < 10 ms

Accuracy Class: 0.1% to 0.25%

Stability Note: Long-Term Stability: ± 0.25% FS over 6 months @ 70°F

Supply Voltage: 9 to 14.5 Vdc

Sensing Element: Capacitive

Acceleration, Max: 10 g

Electrical Output: 0.1 to 5.1 V

Materials, Wetted: Alumina, Elastomer, Gold, Stainless Steel

Output Resistance: <5 Ω

Supply Power Note: 12 Vdc (9 to 14.5 Vdc max)

Response Time Note: < 10 ms to reach 90%

Media Compatibility: Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

Electrical Connection: Cable

Electrical Output Note: 0.1 to 5.1 Vdc, 3-wire

Process Connection Size: 1/8 in

Process Connection Type: Barbed Fitting

Storage Temperature, Max: 120 °C

Storage Temperature, Min: -55 °C

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -20 °C

Compensated Temperature, Max: 55 °C

Compensated Temperature, Min: 0 °C

Thermal Effect on Span error, Max: ± 1% gage

Thermal Effect on Zero error, Max: ± 0.01%/°F span , ± 0.01%/°F span
