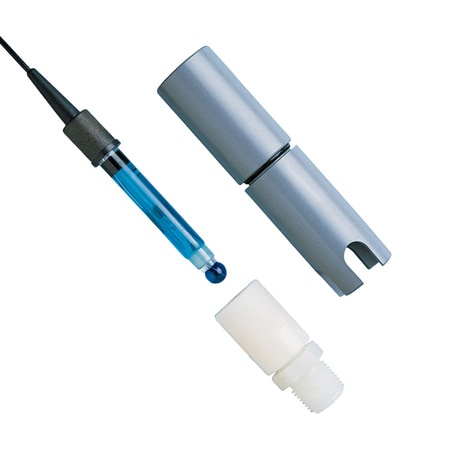

OMEGA PHE-6351-10-PT1K Preamplified Alpha® pH Electrodes (pH, 80 °C, 0 to 13 pH)

Height: 28 mm

Length: 914 mm

Diameter: 0 mm

Impedance: 10 kΩ

Unity Gain: 1

Sensor Type: Industrial submersible combination

Battery life: up to 1 yr

Cable Length: 10 ft

Output Detail: 0 pH = +414.1 mV 14 pH = -414.1 mV @ 25°C (77°F)

Supply Voltage: ±1.5 to ±9 Vdc

Measurement Type: pH

Construction Type: 1000 Ω Platinum RTD ATC

Electrical Output: ± 414.1 mV

Enclosure Ratings: General purpose

Enclosure Material: ABS

PH Measurement Range: 0 to 13 pH

Electrical Connection: N/A

Process Connection Size: N/A

Process Connection Type: N/A

Temperature Sensor Type: N/A

Process Temperature, Max: 80 °C

Process Temperature, Min: 0 °C
