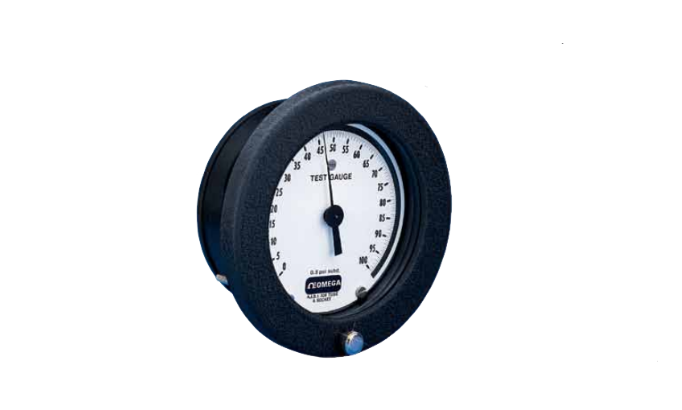

Pressure Type: Compound Gauge
Pressure Range Units: psi
Pressure Range Min: -15
Pressure Range Max: 15
Pressure Port Type: NPT Male
Pressure Port Size: 1/2"
Accuracy Value: ±0.25%
Accuracy Class: 0.1% to 0.25%
Dial Size: 4.5"
Additional Features: Rear Connection
Case: Solid Aluminum with Epoxy-coated Black Finish
Window: Glass
Movement: Stainless Steel
Bourdon Tube: Monel
Connection: Monel
Fitting: ½ MNPT
Dial: Externally adjustable, aluminum, white background, black graduations and polished mirror band
Mounting: Back Connection
Accuracy: 0.25% FS
Ring: Mounting Flange with Hinged Cover Ring Secured by Knurled Screw
Safety Features: Solid Front with Pressure Relief Back
Media Temperature: 66°C (150°F); models will withstand continuous temperature up to 177°C (350°F), but there will be discoloration of case and dial face)
Temperature Compensation: 0.005% FS/°F
See more detail information in the Datasheet
