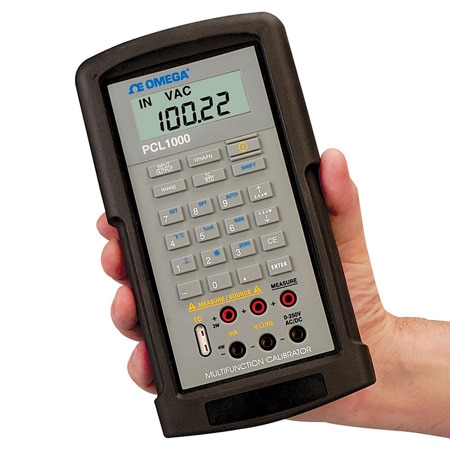

OMEGA PCL1000 Handheld Multifunction Calibrator w/ Pressure Modules

Width: 107 mm

Height: 221 mm

Length: 58 mm

Weight: 0.9 kg

RTD Type: Pt 385 (100, 200, 500, 1 kΩ)

Frequency: CPM: Source 2 to 1000.0; measure 0 to 1000.0,Hz: Source 0 to 1000; measure 0 to 1000.0,kHz: Source 1 to 10.0; measure 0 to 10.00

Input Type: pH

Resistance: 3200 Ω

Battery life: 25 hr

Current, Max: 0 to 24 mA

Voltage Note: Low: 0 to 20.000 Vdc; read and source High: 0 to 250 Vdc or Vac; read only

Data Interface: RS232

RTD Input Note: RTD Types: JIS, Ni120, Cu10; RTD IEX Range: 0.01 to 3 mA; RTD Frequency Response: 10 ms

Continuity Test: 0 to 400.0 Ω; audible tone under 10 Ω

Thermistor Type: Series 400

Thermocouple Type: J, K, T, E, R, S, B, N, L, U

Loop Supply Limits: Voltage Drive: 1 mA

Battery Size and Type: Alkaline AAA
