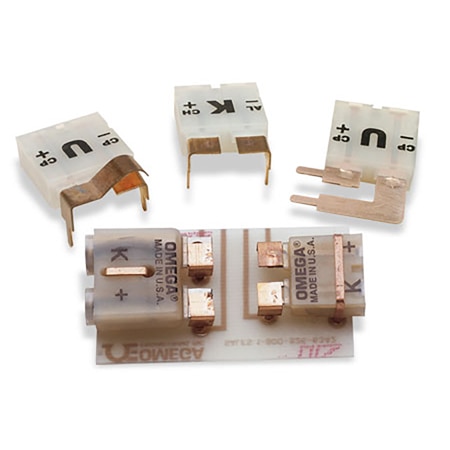

OMEGA PCC-OST-K-100-R Circuit Board Mountable Thermocouple Connectors (K, Standard Female Thermocouple Connector, Transistor Retainer Clip, Protection Circuit Board Connector)
Manufacturer: OMEGA Model: PCC-OST-K-100-R - Contact
Width: 15.5 mm
Height: 9.1 mm
Length: 20.8 mm
Diameter: 1.77 mm
Mounting: Solderable; mounts directly to PC board; Horizontal Orientation
Materials: Glass-Filled Nylon
Pack Size: 100
Sensing Element: Thermocouple
Connection Style: Protection Circuit Board Connector
Connector Options: Transistor Retainer Clip
Thermocouple Type: K
Additional Features 1: Transistor retainer clip
Additional Features 2: None
Electrical Connection: Standard Female Thermocouple Connector
Number of Pins Sockets: 2
Operating Temperature, Max: 180 °C
Operating Temperature, Min: -29 °C
