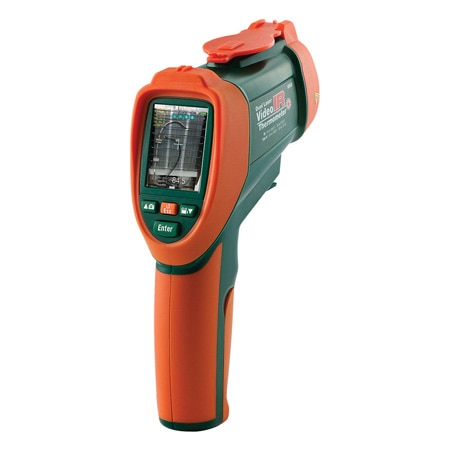

OMEGA OS-VIR50 -50 °C to 1370 °C Video Infrared Thermocouple & Humidity Meter (12:1, Thermocouple Type K, 2200 °C)

Alarm: High and Low

Laser: Circular

Width: 57 mm

Height: 189 mm

Length: 152 mm

Memory: 49MB Internal Flash, Support 8GB micro SD card

Weight: 494 g

Accuracy: ± 1 %

Resolution: 0.1°C

Form factor: Pistol Grip

Battery life: 4 hr

Display Note: 2.2" TFT 320 x 240 pixels

Display Type: LCD

Accuracy Note: 31 to 212°F: ± (1% of rdg + 4°F/2°C)

Field of view: 12:1

Repeatability: ± 0.5%

Response Time: 150 ms

Data Interface: USB

Emissivity Note: 0.10 to 1.00 Adjustable

Emissivity, Max: 1

Emissivity, Min: 0.1

Repeatability Note: ± 0.5% or 1.8°F / 1°C

Additional Features 1: Camera 640 x 480 pixels

Battery Size and Type: Li-ion

Relative Humidity Note: 0 to 100% RH

Relative Humidity, Max: 1

Relative Humidity, Min: 0%

Temperature Sensor Type: Thermocouple Type K

Process Temperature, Max: 2200 °C

Process Temperature, Min: -50 °C

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C

Ancillary Temperature Probe: -50 to 1370 °C

Datasheet
