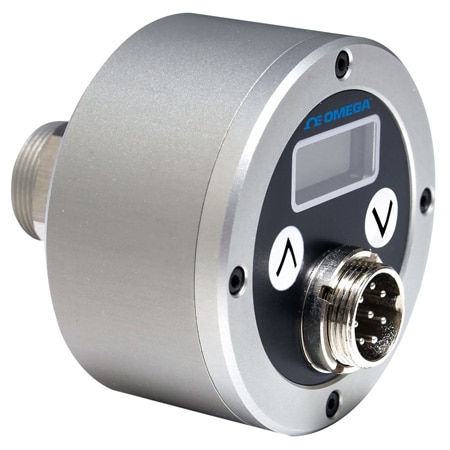

OMEGA OS-AE11-201 Compact IR Sensor with Adjustable Emissivity 6 Digit LCD (500 °C)

Optics: 20:1

Weight: 200 g

Display: Yes

Approvals: asd

Impedance: 10 kΩ

Statistics: Average, Peak Hold, Valley Hold

Cable Length: 3 m

Current Draw: 100 mA

EMC Standard: EN 61326

Laser Output: false

Accuracy Note: ± 1% of reading or ± 1.5ºC, whichever is greater

Output Signal: Current

Repeatability: ± 0.5%

Response Time: 150 ms

Supply Voltage: 24 Vdc

Emissivity Note: 0.100 ~ 1.000 (adjustable)

Emissivity, Max: 1

Emissivity, Min: 0.1

Housing Material: Aluminum

Enclosure Ratings: IP65, NEMA Type 4

Intrisically Safe: No

Supply Power Note: 24 VDC ± 20%

Repeatability Note: ± 0.5% of reading or ± 1ºC, whichever is greater

Laser Classification: Class 2

Loop Resistance, Max: 500 Ω

Additional Features 1: Fixed Mounting Bracket, Adjustable Mounting Bracket

Relative Humidity, Max: 95%

Relative Humidity, Min: 10%

Spectral Response, Max: 14 μm

Spectral Response, Min: 8 μm

Temperature Resolution: 0.1 °C

Process Temperature, Max: 500 °C

Process Temperature, Min: 0 °C

Storage Temperature, Max: 80 °C

Storage Temperature, Min: -20 °C

Operating Temperature, Max: 70 °C

Operating Temperature, Min: 0 °C
