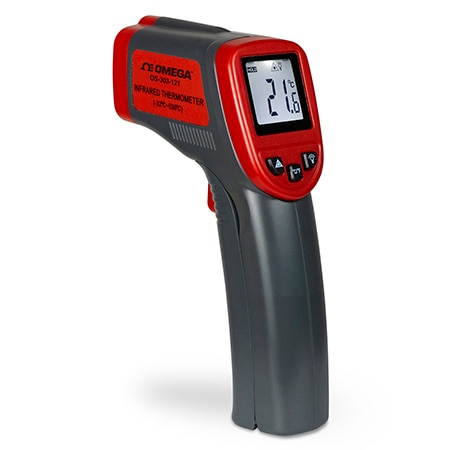

OMEGA OS-303-121 -32 to 530 °C, 12:1 Essential Infrared Thermometer (12:1, 530 °C)

Laser: Single Laser

Width: 130 mm

Height: 152 mm

Length: 38 mm

Weight: 145 g

Accuracy: ± 2 °C (± 3.6 °F)

Form factor: Pistol Grip

Battery life: 16 hr

Display Note: Large Backlit LCD Screen with LED flashlight

Display Type: LCD

Accuracy Note: ± 2°C or 2%, whichever is greater

Field of view: 12:1

Repeatability: 0.01

Response Time: 500 ms

Emissivity Note: Fixed 0.95

Emissivity, Max: 0.95

Emissivity, Min: 0.95

Repeatability Note: 1% of reading or 1°C

Response Time Note: 500 ms (95% response)

Battery Size and Type: Alkaline 9V

Relative Humidity Note: 10 -95% RH

Relative Humidity, Max: 0.95

Relative Humidity, Min: 10%

Spectral Response, Max: 14 µm

Process Temperature, Max: 530 °C

Process Temperature, Min: -32 °C

Storage Temperature, Max: 60 °C

Storage Temperature, Min: -20 °C

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C

Datasheet
