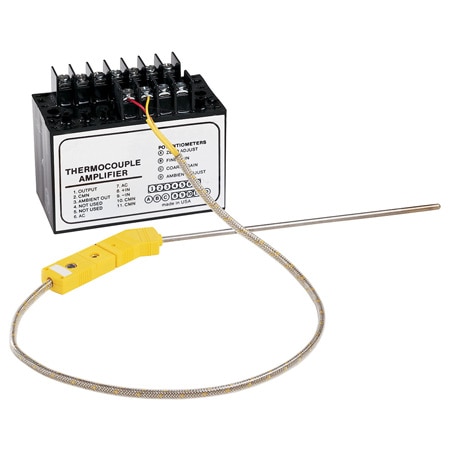

OMEGA OMNI-AMP IV-13-115 Rugged Epoxy Encapsulated Thermocouple Amplifier (Thermocouple (Type J, K,T, E), ± 10 V into 10 kΩ min)

CMRR: 120 dB min @ 60 Hz

NMRR: 80 dB min @ 60 Hz

Width: 95 mm

Height: 73 mm

Length: 51 mm

Weight: 455 g

Bandwidth: 3 dB down at 1.5 Hz 40 dB/decade roll-off

Input Type: Thermocouple (Type J, K,T, E)

Protection: Output Protection: Continuous short circuit proof, Input Protection: Up to 115 Vac or Vdc common mode or differential Output Port

Resolution: Infinite

Input Noise: 0 to 1.5 Hz: 1.4 µVRMS (RTI)

Input Range: 40 to 1500

Sensitivity: 10 mV/°F

Supply Power: 115 Vac @ 3 VA max

Non-Linearity: ± 0.005 %

Output Signal: Voltage

Impedance Input: 2 MΩ

Electrical Output: ± 10 V into 10 kΩ min

Supply Power Type: AC

Common Mode Voltage: +10 to -10 Vdc or 20 Volts peak-to-peak ac

Long Term Stability: Zero: ± 1µV/Month;Span: ± 0.05%; Stability of zero point - 2 µV/°C , Span stability - ± 0.01%/°C

Additional Features 1: Upscale burnout

Programmable Functions: Trim Pot

Storage Temperature, Max: 80 °C

Storage Temperature, Min: -20 °C

Cold Junction Compensation: ± 0.045°C/°C

Operating Temperature, Max: 55 °C

Operating Temperature, Min: 0 °C

Thermocouple Break Protection: Upscale
