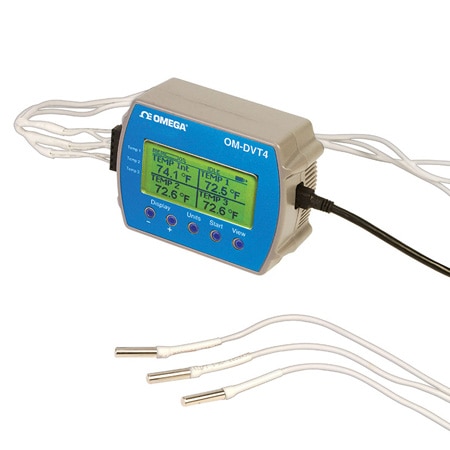

OMEGA OM-DVT4 Four Channel Temperature Data Logger with Graphing Display (Temperature, USB, ± 0.5 °C)

Width: 10.2 cm

Height: 3.8 cm

Length: 7.7 cm

Weight: 200 g

Materials: Nickel-Plated Brass

Calibration: User single point offset calibration is available through software for all temperature channels, calibration can be password protected

Form factor: Benchtop

Samples,Max: 87040

Battery life: up to 1 yr

Cable Length: 4.6 m

Display Type: LCD

Samples Note: 21,760 points for 4 temperatures, 29,013 points for 3 temperatures, 43,520 points for 2 temperatures, 87,040 points for single temperature

Sampling Rate: 1 Hz (1 update/second)

Time Accuracy: ± 100 ppm

Data Interface: USB

LED Indicators: Visual indication through the status LED

Measurement Type: Temperature

Number of Inputs: 3

Probe Tip Length: 2 in

Real-Time Status: Visual indication through the status LED

Supply Power Type: Battery

Probe Tip Diameter: 0.2 in

Sampling Rate Note: User selectable from 1 second to 18 hours, in 1 second increments

Temperature Accuracy: ± 0.5 °C

Additional Features 1: Data Logger with Display

Battery Size and Type: Alkaline AA

Number of Measurements: 1

Software Compatibility: Windows XP SP2/VISTA/7/8 (32- and 64-bit)

Temperature Resolution: ± 0.1 °C

Display Measuring Units: °C, °F, %RH

Process Temperature, Max: 65 °C

Process Temperature, Min: -10 °C

Storage Temperature, Max: 70 °C

Storage Temperature, Min: -20 °C

Operating Temperature, Max: 65 °C

Operating Temperature, Min: -10 °C
