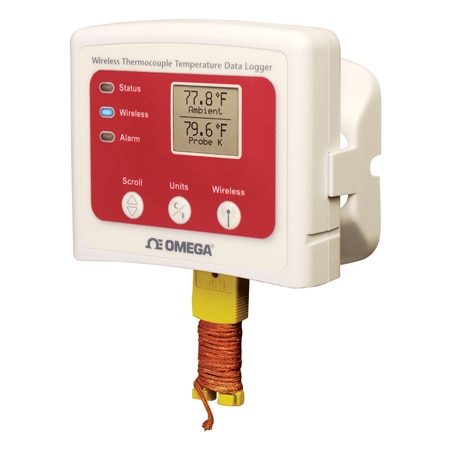

OMEGA OM-CP-RFTCTEMP2000A Wireless Thermocouple Temperature Data Logger with Display (Temperature, USB)

Width: 88.9 mm

Height: 24.1 mm

Length: 76.2 mm

Memory: 16128

Weight: 116 g

Alarm Delay: Programmable time delay

Calibration: Digital Calibration through Software

Form factor: Handheld/Wall Mount

Memory Note: 16,128 per channel

Samples,Max: 16128

Start Modes: Immediate Start

Battery life: up to 3 yr

Display Type: LCD

Memory Modes: Yes

Sampling Rate: 1 Hz (1 update/second)

Time Accuracy: ± 1 minute/month

Wireless Band: 2.405 - 2.48 GHz

Data Interface: USB

LED Indicators: • Green LED blinks every 5 seconds to indicate unit is logging

Measurement Type: Temperature

Supply Power Type: Battery

Operating Humidity: 0 to 95% RH

Sampling Rate Note: One Reading every second up to one every 24 hours

Data Interface Note: USB to mini USB 250,000 baud for standalone operation or OM-CP-RFC1000-EXT required for wireless operation.

Battery Size and Type: Li-ion, 9V

Electrical Connection: Sub-D Female Miniature Connector

Number of Measurements: 1

Software Compatibility: XP SP3/Vista/7 and 8 (32-bit and 64-bit)

Temperature Sensor Type: Thermocouple

Process Temperature, Max: 60 °C

Process Temperature, Min: -20 °C

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C

Thermocouple Resistance, Max: 100 Ω

Wireless Receiver Sensitivity: -95 dBm

Internal Channel Response Time: 10 min

Internal Channel Calibrated Accuracy Note: ± 0.10 °C(± 0.18°F)0 to 55°C(32 to 131°F)
