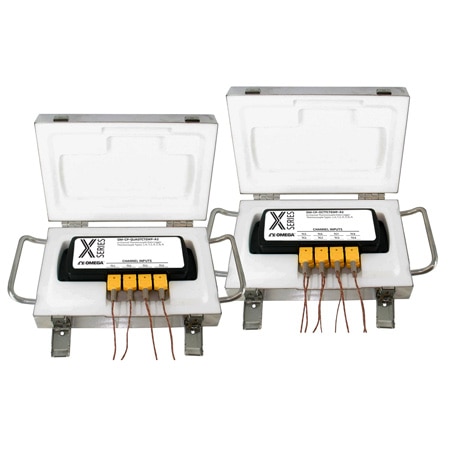

OMEGA OM-CP-OCTTHERMOVAULT-A2 Multi-channel Oven Temperature Data Logger (Temperature, USB)

Width: 168 mm

Height: 62 mm

Length: 723 mm

Memory: 262016

Weight: 4.07 kg

Calibration: Digital calibration through software

Form factor: Benchtop

Memory Note: 262,016 readings per channel

Samples,Max: 2000000

Start Modes: Adjustable Delay Start, Immediate Start

Battery life: up to 18 mo

Sampling Rate: 1 day

Time Accuracy: ± 1 minute/month

Data Interface: USB

LED Indicators: 1 per channel and 2 status LEDs

Measurement Type: Temperature

Number of Inputs: 8

Supply Power Type: Battery

Sampling Rate Note: 4 Hz up to 1 reading every 24 hours

Data Interface Note: USB-A to micro USB cable (included); 460,800 baud

Additional Features 1: Oven Temperature Data Logger, 72 inch Type K Thermometer

Battery Size and Type: Li-ion, 9V

Electrical Connection: Screw Terminal

Number of Measurements: 8

Relative Humidity, Max: 0.95

Relative Humidity, Min: 0%

Software Compatibility: Windows® XP/VISTA/7 and 8 (32- and 64-bit)

Temperature Resolution: 0.01 °C

Temperature Sensor Type: Thermocouple

Process Temperature, Max: 60 °C

Process Temperature, Min: -20 °C

Temperature Resolution Note: °C
