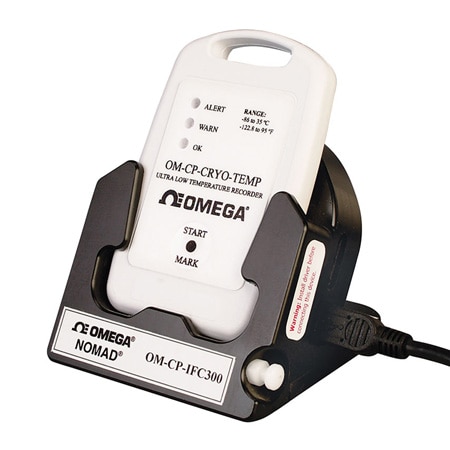

OMEGA OM-CP-CRYO-TEMP Ultra Low Temperature Data Logger (Temperature, USB, ± 0.1 °C)

Width: 54 mm

Height: 11 mm

Length: 83 mm

Memory: 32767

Weight: 40 g

Enclosure: ABS

Alarm Delay: Programmable time delay

Calibration: Digital calibration is available to the user through software

Form factor: Benchtop

Memory Note: 32,767; Software Configurable memory wrap

Samples,Max: 33000

Start Delay: Up to 30 days from PC launch or manual start

Start Modes: Adjustable Delay Start, Immediate Start

Battery life: up to 1 yr

Sampling Rate: 5 Hz (5 updates/second)

Time Accuracy: ± 2 minute/month

Data Interface: USB

LED Indicators: Green : Blinks to indicate safe conditions during logging;Yellow : Blinks to indicate warn limits have been exceeded ;Red : Blinks to indicate alarm criteria (limits/delay) have been exceeded

Measurement Type: Temperature

Enclosure Ratings: IP65

Supply Power Type: Battery

Operating Humidity: 0 to 100% RH

Sampling Rate Note: Recording Interval 5-30 sec

Data Interface Note: USB docking station to PC;38400baud

Temperature Accuracy: ± 0.1 °C

Additional Features 1: Ultra Low Operating Temperature

Battery Size and Type: Li-ion

Number of Measurements: 1

Software Compatibility: XP SP3/Vista/7 and 8 (32-bit and 64-bit)

Temperature Resolution: ± 0.1 °C

Temperature Sensor Type: Thermistor

Process Temperature Note: -86 to 35°C (-122 to 95°F) recommended, may be used up to 55°C (131°F)

Process Temperature, Max: 35 °C

Process Temperature, Min: -86 °C

Operating Temperature, Max: 35 °C

Operating Temperature, Min: -86 °C

Temperature Sensor Type Note: NTC Thermistor
