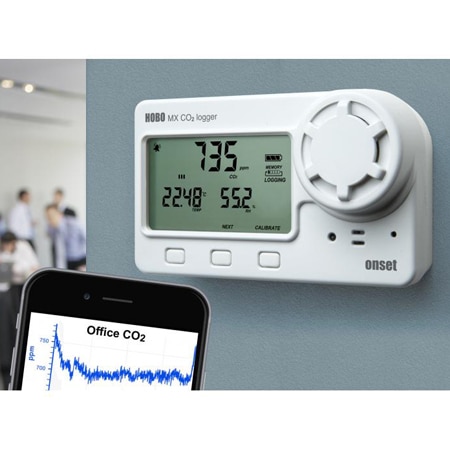

OMEGA MX1102A HOBO MX Bluetooth CO2, Temp and RH Data Logger with Display (50 °C, 1 to 90% RH, Non-Dispersive Infrared (NDIR), Wall Bracket Mount)

Width: 3 in

Height: 1.88 in

Length: 5.1 in

Memory: 128 KB

Weight: 9.43 oz

Display: LCD

Approvals: CE

Input Type: Internal

Stop Modes: Button Push, When Memory is Full, At set date and time, At set Duration

Calibration: Auto or Manual to 400 ppm

Form factor: Wall Bracket Mount

Memory Note: 20 seconds via USB; approximately 60 seconds via Bluetooth Smart, may take longer the further the device is from the logger

Radio Power: 1 mW

Samples,Max: 85k Samples, Interval Selectable 1 sec to 18hrs

Sensor Type: Non-Dispersive Infrared (NDIR)

Start Modes: At set date and time, Button Push, Immediate Start, Next Interval

Battery life: up to 6 mo, with reading interval of 5 min

CO2 Accuracy: ± 50 ppm

Display Note: LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range

Memory Modes: stop when full, Wrap when full

Restart Mode: Push button

Accuracy Note: Temperature Sensor Accuracy: ± 0.20°C from 0° to 50°C (± 0.36°F from 32° to 122°F), Relative Humidity Accuracy: ± 2% from 20% to 80% typical at 25°C, CO2 Accuracy: ± 50 ppm ± 5% of reading at 25°C (77°F), less than 70% RH and 1,013 mbar

Configuration: HOBOmobile® app, Android, iOS, HOBOware for PC

Logging Modes: burst, Fixed interval

RH Resolution: 0.0001

Response Time: Temperature: 12 Min, RH: 1 Min, CO2: 1 Min

Time Accuracy: ± 1 minute/month at 25°C

Data Interface: Bluetooth

RH Sensor Drift: <1% Per Year

Resolution Note: Temperature Sensor Resolution: 0.024°C at 25°C, Relative Humidity Resolution: 0.01% at 25°C

Measurement Type: CO2, Relative Humidity, Temperature

Enclosure Ratings: IP50

Relative Humidity: 1% to 90% RH non-condensing

Supply Power Type: Battery

Response Time Note: Temperature: 12 Minutes to 90% in airflow of 1 m/s, RH: 1 Minute to 90% in airflow of 1 m/s, CO2: 1 Minute to 90% in airflow of 1 m/s

Transmission Range: 30.5 m

Data Interface Note: Mobile Device Compatibility: iOS 8.3, 8.4 & 9.0, and Bluetooth 4.0 or later Bluetooth Compatibility :Bluetooth 4.0 or later (Bluetooth Low Energy, Bluetooth Smart)

RH Measurement Range: 1 to 90% RH

Temperature Accuracy: ± 0.21°C

Battery Size and Type: Alkaline AA

CO2 Measurement Range: 0 to 5000 ppm

Measurement Range Note: RH :1% to 70% RH when CO2 sensor is enabled (non-condensing), 1% to 90% RH when CO2 sensor is disabled (non-condensing)

Number of Measurements: 3

Temperature Resolution: 0.024 °C

Temperature Sensor Drift: < 0.1°C Per Year

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C

Relative Humidity Accuracy: ± 2% RH

Temperature Measurement, Max: 50 °C

Temperature Measurement, Min: 0 °C
