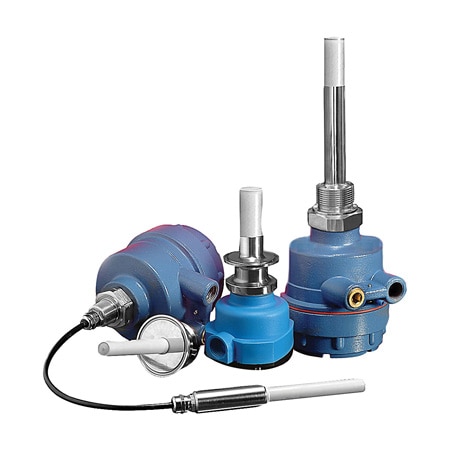

OMEGA LVCN7532 Capacitive RF Single Point Level Switches (SPDT NO/NC, Selectable, 2 in, Tri-Clamp, 145 psi)

Approvals: RoHS

Materials: Aluminum

Vibration: 5 MHz

Insulation: PVC

Time Delay: 1 to 20 sec

Switch Type: SPDT NO/NC, Selectable

Probe Length: 4.75 in

Switch Rating: 1 A @ 60 or 120 Vac/Vdc

Probe Diameter: 0.625 in

Supply Voltage: 12 to 30 Vdc

Switching Point: Adjustment Potentiometer

Enclosure Ratings: IP66, NEMA Type 4

Materials, Wetted: 316 Stainless Steel, PTFE

Power Consumption: 2 VA

Supply Power Type: DC

Media Compatibility: Alcohols, Dry Bulk Solids, Grain, Oils, Powders, Sand, Water

Electrical Connection: Cable Gland with Screw Terminal block

Operating Pressure, Max: 145 psi

Process Connection Size: 2 in

Process Connection Type: Tri-Clamp

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -10 °C

Material Construction Option: 316 Stainless Steel, PTFE
