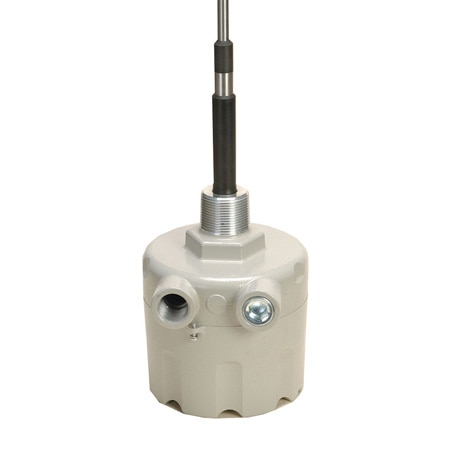

OMEGA LV804 RF Capacitance Single Point Level Switches (SPDT NO/NC, Selectable, 1 1/4 in, NPT Male, 50 psi)

Approvals: CSA(US) CSA(C), CE

Materials: Powder Coated Aluminum

Stability: ± 0.027 pf per °C @ 0.5 pf setting

Insulation: PVC

Time Delay: 0.25 to 15 sec

Sensitivity: 0.5 pf to 150 pf

Switch Type: SPDT NO/NC, Selectable

Altitude,Max: 2000 m

Probe Length: 16 in

Switch Rating: 5 A @ 250 Vac, 30 Vdc

Supply Voltage: 115 Vac, 2.5 VA

Dielectric Range: 1.5 to 9.0

Sensitivity Note: Multi-turn potentiometer adjustment 0.5 pf to 150 pf

Enclosure Ratings: IP66, NEMA Type 4

Materials, Wetted: 316 Stainless Steel, Aluminum, Nylon

Supply Power Note: 115 Vac (± 15%), 2.5 VA, 50/60 Hz

Supply Power Type: AC

Media Compatibility: Air, Alkaline solutions, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-Corrosive Dry Gases, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids

Electrical Connection: 3/4 in NPT female Conduit with Screw Terminal block

Operating Pressure Note: 3.5 bar (50 psi) maximum (aluminum connection)

Operating Pressure, Max: 50 psi

Process Connection Size: 1 1/4 in

Process Connection Type: NPT Male

Operating Temperature, Max: 65 °C

Operating Temperature, Min: -40 °C

Material Construction Option: Aluminum, Food Grade Nylon
