Height: 0.8 in
End Rod: REC-014M
Linearity: ± 0.2%
Materials: 17-4 PH Stainless Steel
Force Type: Compression, Tension
Hysteresis: ± 0.1%
Load Button: LBC-14
Cable Length: 10 ft
Overload, Max: 300% FS
Repeatability: ± 0.1%
Safe Overload: 150% FS

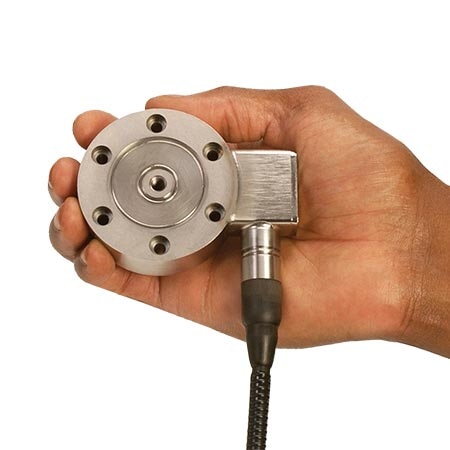

Load Cell Type: Pancake
Outer Diameter: 2.5 in
Supply Voltage: 10 Vdc
Bridge Resistance: 350 Ω
Electrical Output: 2 mV/V
Enclosure Ratings: IP68
Submersible Depth: 10 ft
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: 5 POINT NIST
Interchangeability: 0.01
Load Cell Capacity: 5 lbF
Zero/Balance Error: ± 1%
5-Point Calibration: 0%, 50%, 100%, 50%, 0% (in Compression)
Thermal Span Effect: ± 0.0036% rdg/°C
Thermal Zero Effect: ± 0.0036% FSO/°C
Through Hole Thread: 1/4"-28 UNF
Electrical Connection: Submersible Cable
Full Scale Deflection: 0.003 in
Wiring/Connector Table: Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output
Process Temperature, Max: 71 °C
Process Temperature, Min: 15 °C
Operating Temperature, Max: 82 °C
Operating Temperature, Min: -18 °C
