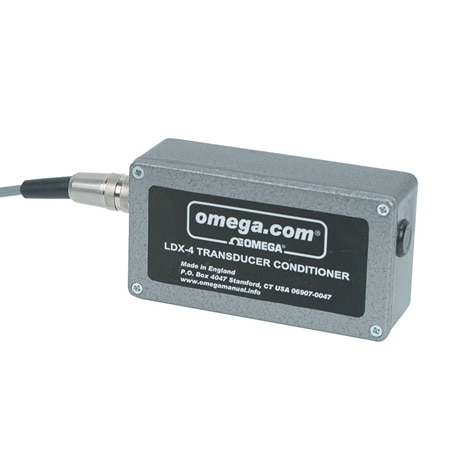

OMEGA LDX-4 Signal Conditioning Amplifier and Power Supply for AC LVDT's (Voltage, +5V, ±10V, 20 mA)

Width: 40 mm

Height: 65 mm

Weight: 300 g

Approvals: CE

Bandwidth: 500 kHz

Input Type: Voltage

Protection: Input Protection: Overvoltage, reverse connection

Input Noise: 20 mV p-p @ 100 kHz

Sensitivity: Transducer : 45 to 450 mV/V

Non-Linearity: <0.1% BSL

Output Detail: Offset Range: 0 to 100%

Output Signal: Current, Voltage

Supply Voltage: 10 to 30 Vdc

Load Resistance: 1 kΩ

Electrical Output: +5V, ±10V, 20 mA

Sensor Excitation: 3 Vrms @ 5 kHz

Supply Power Note: Voltage Output: 140 mA max with 10 Vdc supply voltage; 60 mA max with 30 Vdc supply voltage Current Output: 180 mA max with 10 Vdc supply voltage; 70 mA max with 30 Vdc supply voltage

Supply Power Type: DC

Electrical Connection: Internal Terminal Block

Temperature Coefficient: Gain:<200 ppm/°C;Output:<200 ppm/°C

Operating Temperature, Max: 60 °C

Operating Temperature, Min: 0 °C

Input Electrical Connection: 5-pin circular DIN
