Height: 9 mm
Accuracy: ± 0.5 %
Linearity: ± 0.5%
Materials: Stainless Steel
Force Type: Compression
Hysteresis: ± 0.5%
Cable Length: 5 ft
Overload, Max: 200% FS
Repeatability: ± 0.5%
Safe Overload: 120% FS

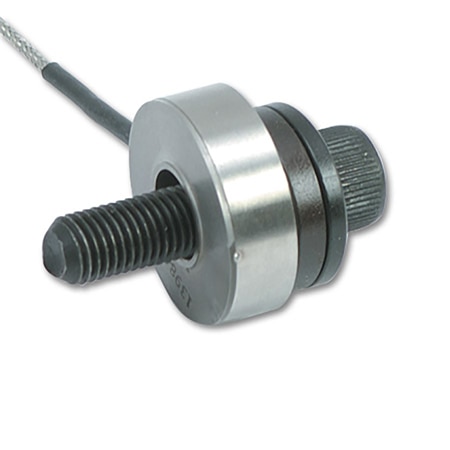

Load Cell Type: Load Washer
Outer Diameter: 25 mm
Supply Voltage: 10 Vdc
Bridge Resistance: 350 Ω
Electrical Output: 2 mV/V
Spherical Washers: SPW-2
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: 5 POINT NIST
Load Cell Capacity: 2000 N
Zero/Balance Error: ± 4%
Thermal Span Effect: ± 0.018% FSO/°C
Thermal Zero Effect: ± 0.018% FSO/°C
Spherical Washers ID: 0.34 in
Electrical Connection: Cable
Full Scale Deflection: 0.001 in
Through Hole Dimension: 10.2 mm
Wiring/Connector Table: Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output
Process Temperature, Max: 71 °C
Process Temperature, Min: 16 °C
Operating Temperature, Max: 127 °C
Operating Temperature, Min: -40 °C
