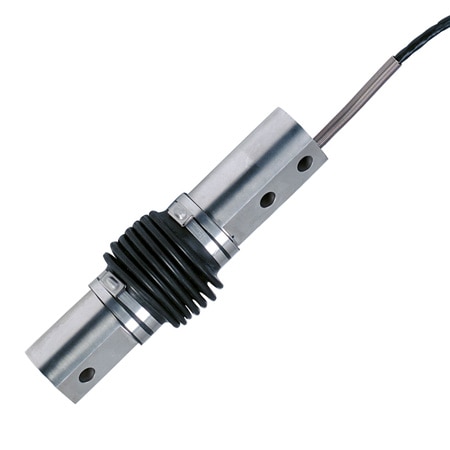

OMEGA LCM602-50 Heavy Duty, Constant Moment Beam Load Cell (50 kgf)

Width: 27 mm

Length: 152 mm

Linearity: ± 0.03%

Materials: Stainless Steel

Force Type: Compression

Hysteresis: ± 0.05%

Cable Length: 15 ft

Overload, Max: 300% FS

Repeatability: ± 0.02%

Safe Overload: 150% FS

Load Cell Type: Bending Beam

Outer Diameter: 35 mm

Supply Voltage: 10 to 15 Vdc

Input Resistance: 350 Ω min

Electrical Output: 2 mV/V

Enclosure Ratings: IP65

Output Resistance: 350 ± 10 Ω

Supply Power Note: 10 Vdc, 15 Vdc maximum

Calibration Option: 5 POINT NIST

Interchangeability: 0.0025

Load Cell Capacity: 50 kgf

Zero/Balance Error: ± 1%

5-Point Calibration: 0%, 50%, 100%, 50%, 0% (in Compression)

Thermal Span Effect: ± 0.001% FSO/°F

Thermal Zero Effect: ± 0.002% FSO/°F

Electrical Connection: Cable

Full Scale Deflection: 0.015 in

Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

Process Temperature, Max: 71 °C

Process Temperature, Min: 16 °C

Operating Temperature, Max: 82 °C

Operating Temperature, Min: -34 °C
