Height: 6.5 in
Accuracy: ± 0.15 %
Linearity: ± 0.10%
Materials: Stainless Steel
Force Type: Tension
Hysteresis: ± 0.10%
Cable Length: 0 ft
Overload, Max: 300% FS
Repeatability: ± 0.05%
Safe Overload: 150% FS

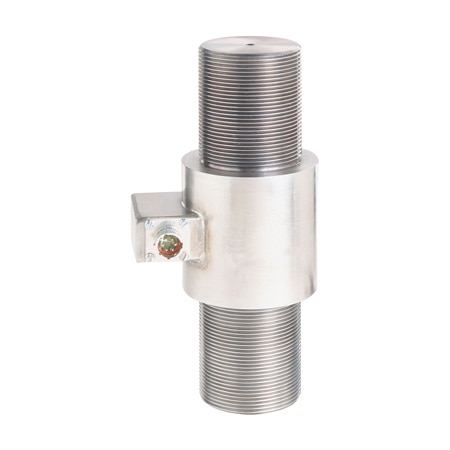

Load Cell Type: Tension Link
Outer Diameter: 3 in
Supply Voltage: 10 Vdc
Mating Connector: MIL-26482-I 10-6S
Bridge Resistance: 350 Ω
Electrical Output: 2 mV/V
Enclosure Ratings: IP67
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: 5 POINT NIST
Load Cell Capacity: 30000 lbF
Zero/Balance Error: ± 1%
5-Point Calibration: 0%, 50%, 100%, 50%, 0% (in tension)
Thermal Span Effect: ± 0.009% FSO/°C
Thermal Zero Effect: ± 0.009% FSO/°C
Electrical Connection: MIL-26482-I 10-6P
Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input
Process Temperature, Max: 71 °C
Process Temperature, Min: 16 °C
Operating Temperature, Max: 121 °C
Operating Temperature, Min: -34 °C
