Width: 1 in
Height: 3 in
Length: 2 in
Weight: 2.5 lb
End Rod: REC-012M
Linearity: ± 0.03%
Materials: 17-4 PH Stainless Steel
Force Type: Tension
Hysteresis: ± 0.02%
Load Button: LBC-012
Cable Length: 0 ft
Overload, Max: 300% FS
Repeatability: ± 0.01%
Safe Overload: 1.5

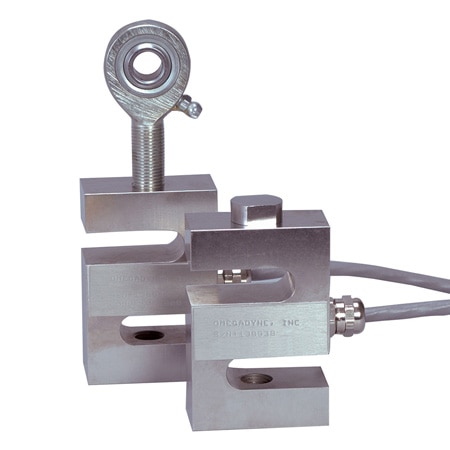

Load Cell Type: S-beam
Supply Voltage: 10 Vdc
Input Resistance: 350 ± 10 Ω
Mating Connector: MIL-26482-I 10-6S
Electrical Output: 3 mV/V
Output Resistance: 350 ± 10 Ω
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: 5 POINT NIST
Interchangeability: 0.0025
Load Cell Capacity: 1000 lbF
Zero/Balance Error: ± 1%
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Thermal Span Effect: 0.002% FSO/°C
Thermal Zero Effect: 0.002% FSO/°C
Electrical Connection: N/A
Full Scale Deflection: 0.02 in
Wiring/Connector Table: Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected
Process Temperature, Max: 71 °C
Process Temperature, Min: 17 °C
Operating Temperature, Max: 93 °C
Operating Temperature, Min: -40 °C
