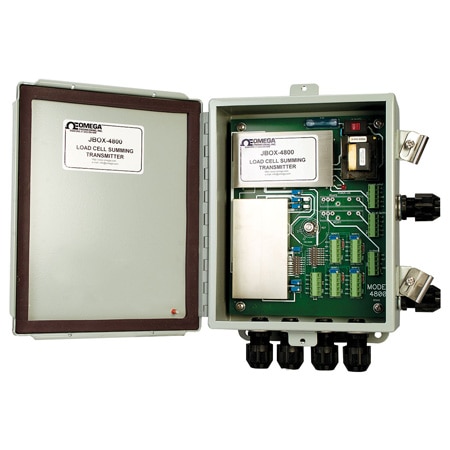

OMEGA JBOX-4800 Summing Box/Transmitter with Process Outputs (Voltage, 0 to 20 mA, 4 to 20 mA, 0 to 10 Vdc, 2 to 10 Vdc)

CMRR: 100 dB

Width: 229 mm

Height: 112 mm

Length: 318 mm

Weight: 4.7 kg

Accuracy: ± 0.1 %

Bandwidth: -3 dB @ 10 Hz

Isolation: Isolation (AC or DC, 3-Way): AC to Input or Output: 750 Vac DC to Input or Output: 300 Vdc/500 p

Linearity: ± 0.01

Input Type: Voltage

Input Noise: 20 mV p-p @ 100 kHz

Input Range: 5 to 50 mV

Output Noise: <1 mVrms, 120 Hz bandwidth

Supply Power: AC: 115V (90 to 130V), 230V (180 to 260V);DC: 11 to 30V, 8 W

Output Signal: Current, Voltage

Response Time: 35 ms

Tare Adjustment: -3 to 6.5 mV, 6.5 to 16 mV, 16 to 25 mV

Electrical Output: 0 to 20 mA, 4 to 20 mA, 0 to 10 Vdc, 2 to 10 Vdc

Enclosure Ratings: IP65, NEMA 4

Supply Power Type: AC/DC

Response Time Note: 35 ms (10 to 90%)

Common Mode Voltage: 5 Vdc

Loop Resistance, Max: 1000 Ω

Excitation Voltage Note: Exicitation Voltage Range: 5 to 10 Vdc Current Output: 120 mA max Line Regulation: <0.01% typical 0.002% Output Noise: <1 mVrms 120 Hz bandwidth

Temperature Coefficient: 0.0015%/°C;Total : 0.0025%/°C
