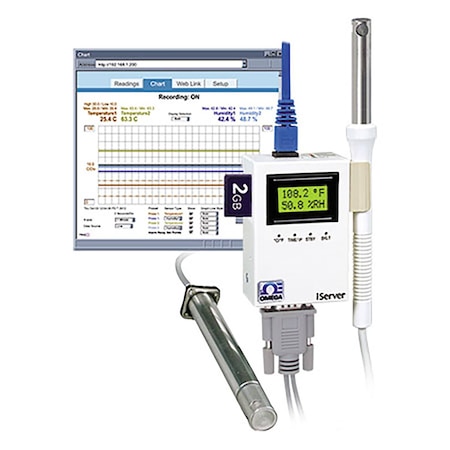

OMEGA ITHX-SD Chart Recorder for Temperature & Humidity (60 °C, 0 to 100% RH, Wall Bracket Mount)

Width: 2.93 in

Height: 1.44 in

Length: 3.56 in

Weight: 0.86 lb

Buoyancy: Salt water: 0.69 oz Negative

Software: Compatible with Windows operating systems, Firmware upgrade from Ethernet OPC Server, iConnect: Configuration software for the Ethernet interface, iLog: Macro for automatic data logging in MS Exce

Approvals: CE, FCC-B

Materials: 316 Stainless Steel, Stainless Steel

Hysteresis: ± 1% RH

Input Type: External

Probe Type: Wand Probe

Form factor: Wall Bracket Mount

Samples,Max: 85k Samples, Interval 1 sec

Battery life: Back-up Battery Life: up to 60 hr, with reading interval of 1 min

Cable Length: 6 in

Display Note: 16 digits, 6mm (0.23”)

Display Type: N/A

Probe Length: 8 in

Relay Output: 1.5 A @ 30 Vdc

probe-length: 8 in

Accuracy Note: Temperature Sensor Accuracy: Wand Probe: ± 0.5°C for 5° to 45°C, Up to ± 1°C for 0° to 5°C and 45° to 70°C, Relative Humidity Accuracy: ± 2.75% for 10 to 90%; ± 3% for 5 to 10% and 90 to 95%, ± 4% for 0 to 5% and 95 to 100%

Configuration: Internal Web UI

Logging Modes: Fixed interval

Non-Linearity: ± 3%

RH Resolution: 0.1%, 12 bit

Repeatability: ± 0.1%

Response Time: Temperature: 5 to 30 sec, RH: 8 sec

Certifications: NIST Traceable Calibration

Data Interface: Ethernet

Probe Diameter: 0.75 in

Supply Current: 0.5 A

Supply Voltage: 9 to 12 Vdc

Measurement Type: Relative Humidity, Temperature

Number of Relays: 2

Supply Power Type: DC/Battery

Data Interface Note: Ethernet : (RJ45) Fixed or auto negotiating 10/100BASE-T, AUTO MDI/MDIX Supported Protocols:TCP, UDP, SNMP, SMTP, NTP, ARP, ICMP, DHCP, DNS, HTTP, and Telnet

RH Measurement Range: 0 to 100% RH

Temperature Accuracy: ± 0.5 °C

Battery Size and Type: Alkaline 9V

Electrical Connection: Sub-D Male Miniature Connector

electrical-connection: Sub-D Male Miniature Connector

Cable Temperature, Max: 80 °C

Cable Temperature, Min: 0 °C

Number of Measurements: 2

Temperature Resolution: 0.1 °C, 14 bit

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -40 °C

Temperature Repeatability: ± 0.1 °C

Operating Temperature Note: iServer Unit: 0 to 60°C Battery: -18 to 55°C ac Power Adapter: 0 to 40°C Wand Cable: 0 to 80°C

Operating Temperature, Max: 60 °C

Operating Temperature, Min: 0 °C

Relative Humidity Accuracy: ± 2.75% RH

Temperature Measurement, Max: 60 °C

Temperature Measurement, Min: 0 °C

Battery Operating Temperature: -18 to 55 °C

AC Adaptor Operating Temperature: 0 to 40 °C
