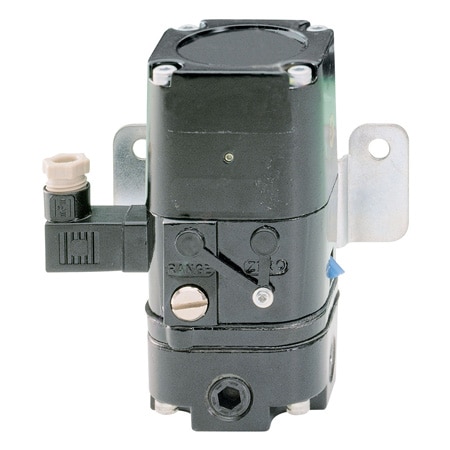

OMEGA IP210A-X15 General Purpose Current to Pressure I/P Converter (15 psi, NPT Female, 1/4 in, IP65, NEMA Type 4X)

Weight: 590 g

Accuracy: ± 1.5 %

Mounting: Direct wall, panel, DIN rail

Approvals: Class I, Div. 1, Groups C and D

Impedance: 315 Ω

Materials: Stainless Steel, Brass, Zinc, Epoxy, Chromated Aluminum, NBR

EMC Standard: IEC 61000-4-3

Accuracy Note: Includes linearity, hysteresis and repeatability

Input Current: 4 to 20 mA

Input Voltage: N/A

Enclosure Type: N/A

Flow Rate Note: 12 scfm @ 100 psig 20 scfm @ 150 psig

Enclosure Ratings: IP65, NEMA Type 4X

Media Compatibility: Clean Dry Air

Input Control Signal: N/A

Output Pressure, Max: 15 psi

Output Pressure, Min: 3 psi

Supply Pressure, Max: 100 psi

Electrical Connection: DIN 43560 connector

Total Air Consumption: 0.1 SCFM

Process Connection Size: 1/4 in

Process Connection Type: NPT Female

Air Supply Pressure, Max: 100 psi

Air Supply Pressure, Min: 18 psi

Volumetric Flow Rate, Max: 12 SCFM

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -30 °C

Supply Pressure Sensitivity: ±0.15% span per 1.5 psig

Material Construction Option: N/A
