OMEGA HX93BV0-D Digital Display Temperature/Relative Humidity Transmitter (0 ~ 100%, -30 ~ 75°C, 0~1 Vdc, duct mount)

Output: 0~1 Vdc for 0 to 100% RH and -30 to 75°C (-22 to 167°F)

Relative Humidity Temperature Compensation: -30 to 75°C (-22 to 167°F)

Temperature Response Time: 5 seconds minimum, 30 seconds maximum

Relative Humidity Response Time: 8 second typical

Repeatability: ±0.1% RH, ±0.2°C (0.4°F)

Sample Rate: 1 sample every 4 seconds

Housing: Gray polycarbonate, NEMA rated up to 13 (IP54)

Connections: Liquid-tight nylon with neoprene gland, for 2.50 to 8.00 mm (0.09 to 0.315") diameter cable; internal 6 position terminal block accepts 14 to 22 gauge wire

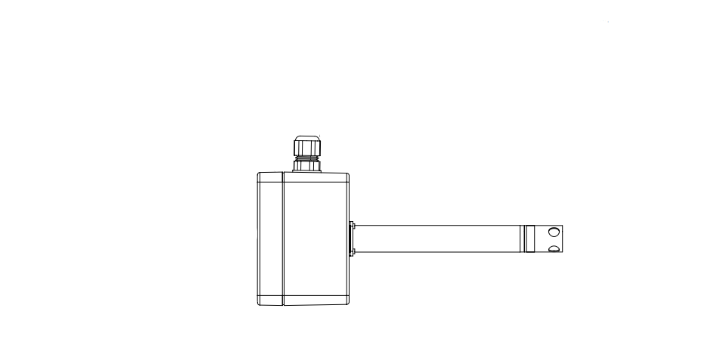

Dimensions: (with Probe): 80.01 L x 82.30 W x 183.13 D mm (3.15 x 3.24 x 7.21")

Weight: 256 g (9.0 oz)

Comes complete with operator’s manual
